Flexible flat cable connector ACF-050-XX-C-CMS-HdataZIFFPC
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- ZIF, FPC, FFC, SMT
- Shape
- right-angle
- Electrical characteristics
- multipole, AC
- Material
- nylon
- Product applications
- for flexible flat cables
- Primary current
0.4 A
- Voltage
250 V
- Pitch
0.5 mm
(0.02 in)
Description

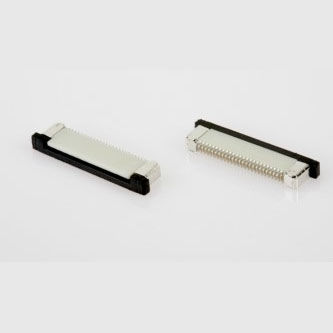

Connector right angle SMT type ZIF for FFC/FPC
Technical specifications
Current rating : 0.4 A
Dielectric withstanding voltage : 250 Volts AC during 1 mn
Insulation resistance : > 250 MΩ
Contact resistance : < 40 mΩ
Operating temperature : -25°C to +85°C
Max processing temperature : 260°C during 5 sec
Contact : brass
Plating : tin
Insulator : nylon-6T or LCP (UL94V-0)
