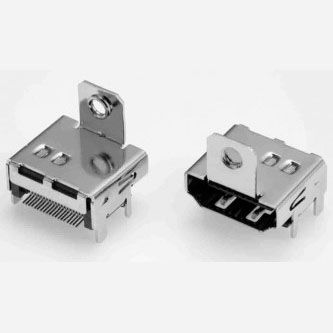

HDMI connector F-C-S-19-T/G-( )-( )dataSMTrectangular
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- HDMI, SMT
- Shape
- rectangular, right-angle
- Connection type
- female
- Electrical characteristics
- multipole, AC
- Material
- copper
- Primary current
0.5 A
- Voltage
40 V
Description
HDMI female right angle SMT
Technical specifications
Current rating : 0.5 A
Voltage rating : 40 Volts AC (RMS)
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 100 MΩ
Contact resistance : < 50 mΩ
Operating temperature : -25°C to +85°C
Max processing temperature : 260°C during 5 sec
Contact : brass
Plating : gold or nickel over tin
Insulator : LCP, UL94V-0
Shell : copper alloy
