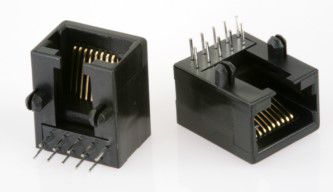

Data connector ARJ-P-C-( )-X/X-H-AORJ45RJ11RJ12
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- RJ45, RJ11, RJ12
- Shape
- right-angle
- Connection type
- female
- Electrical characteristics
- multipole, AC
- Material
- plastic
- Primary current
1.5 A
- Voltage
120 V
Description
RJ plastic right angle upper contact
Technical specifications
Current rating : 1.5 A
Voltage rating : 120 Volts AC
Dielectric withstanding voltage : 1000 Volts AC during 1 mn
Insulation resistance : > 500 MΩ
Contact resistance : < 20 mΩ
Max processing temperature : 235°C during 5 sec
Contact : phosphor bronze
Mating area : gold over nickel
Termination area : tin over nickel
Insulator : PBT, UL94V-0
