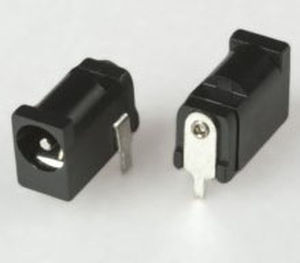

Jack connector AJ-P-1-10-F-Celectrical power supplyright-anglefemale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Format
- jack
- Shape
- right-angle
- Connection type
- female
- Electrical characteristics
- power, AC, DC
- Primary current
1 A, 2 A
- Voltage
12 V, 100 V
Description
Power jack Ø 1.0 or 1.3 mm right angle type
Technical specifications
Current rating : 2 A DC, 1 A AC
Voltage rating : 12 Volts DC, 100 Volts AC
Dielectric withstanding voltage : 500 Volts AC during 1 mn
Insulation resistance : > 100 MΩ
Contact resistance : < 30 mΩ
Insertion force : 0.3 ~ 3.0 Kg
Extraction force : 0.3 ~ 3.0 Kg
Mecanical life : 4000 cycles
Contact : brass or copper alloy
Plating : tin
Insulator : PBT, UL94V-0
