Roller conveyor
horizontaltransporthandling

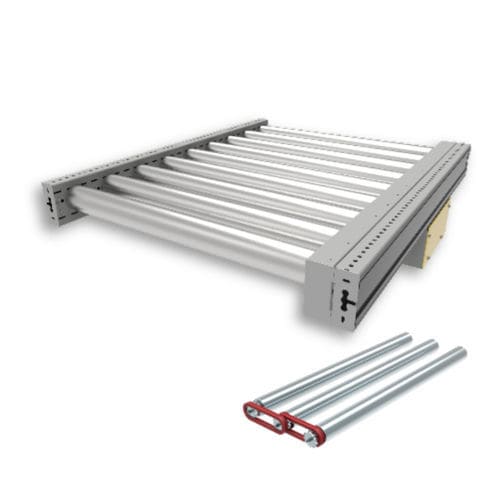

Roller conveyor - ANTIPODA, LDA - horizontal / transport / handling
Roller conveyor - ANTIPODA, LDA - horizontal / transport / handling
Roller conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 2
Roller conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 3
Roller conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 4
Roller conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 5
Roller conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 6
Roller conveyor - ANTIPODA, LDA - horizontal / transport / handling - image - 7
Add to favorites
Compare this product


Characteristics

Technology
roller
Form
horizontal
Function
transport, handling
Construction
modular
Drive mechanism
electric drive
Transported product
for pallet
Sector
for the food industry, for the pharmaceutical industry, for the automotive industry, for assembly lines, for the wood industry, for logistics
Maximum load

Min.: 1,500 kg
(3,306.934 lb)

Max.: 4,500 kg
(9,920.802 lb)

Speed

0.2 m/s
(0.66 ft/s)

Effective width

Min.: 930 mm
(37 in)

Max.: 1,330 mm
(52 in)

Description

PALLET HANDLING ROLLER CONVEYOR ROLLER TO ROLLER TRANSMISSION Side Frame        Reinforced double formed 3 mm S235JR frame, powder coated RAL 9006. Conveyor Rollers        Ø 89 mm x 3mm roller, zinc plated finish.        Ø 76 mm x 3 mm roller, zinc plated finish.        Roller lengths 930 mm, 1130 mm, 1330 mm.        Pallet guide-rings, on specification. Roller Pitch        150mm and 175mm. Maximum Load        From 1 to 3 1500kg pallets per conveyor. Gearmotor Drive        SEW Gearmotor 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.        SEW Gearmotor 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.        SEW Gearmotor 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA. Conveyor Speed        12 m/min / 39.37 ft/min. Load Travel Direction        Bidirectional. Conveyor Supports        Not included with conveyor, specified separately. Operating Temp.        5°C to 50°C / 41°F to 122°F. ACCESSORIES        Conveyor Support.        Walkover Plate.        Fixed End Stopper.        Pneumatic Blade Stopper.        Pneumatic Pallet Indexer.        Adjustable Photocell Brackets.
