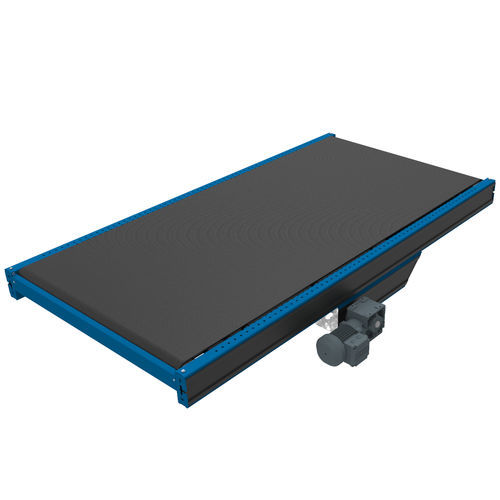

Belt conveyor

inclinedstraightelectric drive

PARCEL AND POSTAL HANDLING BELT CONVEYOR CENTRAL DRIVE STRAIGHT Side Frame        Reinforced double formed 3 mm S235JR frame.        Standard coating, powder coated RAL 5017.        Other colors upon request. Drums        Ø 90 mm drums, zinc plated finish. Maximum Load        50 kg/m. Gearmotor Drive        SEW Gearmotor 230/400V / 50Hz / 3 phase rated voltage, IP55, CE.        SEW Gearmotor 230/460V / 60Hz / 3 phase rated voltage, IP55, UR.        SEW Gearmotor 330/575V / 60Hz / 3 phase rated voltage, IP55, CSA. Belt        Horizontal application – PVC belt, smooth surface, green color.        Inclined application – PVC belt, fine rib surface, petrol color.        Other belts upon request. Conveyor Speed        20 m/min, 25 m/min and 30 m/min. Other speeds upon request. Inclined/Declined        Yes. Load Travel Direction        Both. Conveyor Side Guides        Not included. Available fixed and adjustable side guides. Conveyor Supports        Not included with conveyor, specified separately. Operating Temp.        5°C to 50°C / 41°F to 122°F. ACCESSORIES        Support, Horizontal, Straight.        Support, Inclined, Straight.        Fixed Side Guide, Straight.        Above the Frame Fixed Side Guide.        Adjustable Side Guide.        Fixed Stopper.        Blade Stopper.        Photocell Support, Fixed.        Photocell Support, Adjustable.        Frame Connections.
