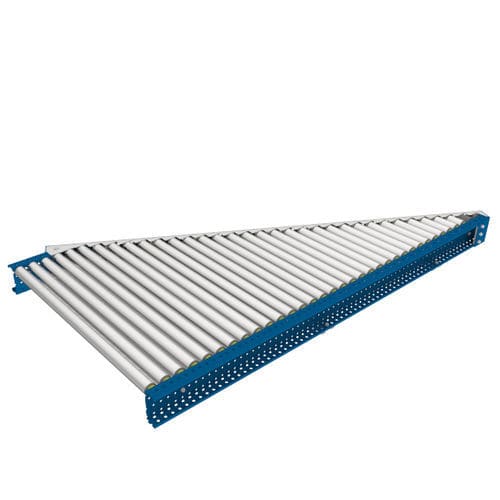

Roller conveyor

horizontalstraightmerge

PARCEL AND POSTAL HANDLING ROLLER CONVEYOR IDDLE ROLLER MERGE Side Frame        Reinforced double formed 3 mm S235JR frame        Standard coating, powder coated :               Pitch                                    RAL               53 mm        1021               60 mm, 90 mm, 120 mm       5017        Other colors upon request. Conveyor Rollers        Ø 50 mm x 1.5mm roller, zinc plated finish.        Roller lengths 450 mm, 650 mm, 850 mm, and 1000 mm available.        Other roller lengths upon request. Infeed/Outfeed Angles        30° and 45°. Roller Pitch        53 mmm, 60 mm, 90 mm, and 120 mm. Maximum Load        50 kg/m. Inclined/Declined        Not suitable. Horizontal application only. Load Travel Direction        Both. Conveyor Side Guides        Not included. Available fixed and adjustable side guides. Conveyor Supports        Not included with conveyor, specified separately. Operating Temp.        5°C to 50°C / 41°F to 122°F. ACCESSORIES        Support, Horizontal, Straight.        Fixed Side Guide, Straight.        Above the Frame Fixed Side Guide.        Adjustable Side Guide.        Photocell Support, Fixed.        Photocell Support, Adjustable.        Frame Connections.
