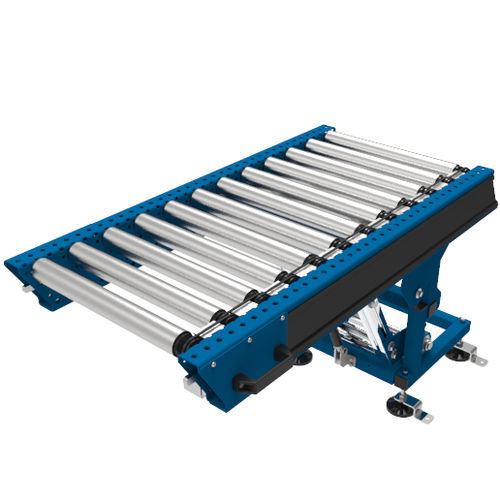

Driven roller conveyor

straightelectric drivefor boxes

PARCEL AND POSTAL HANDLING ROLLER CONVEYOR ROLLERDRIVE LIFT GATE Side Frame        Reinforced double formed 3 mm S235JR frame        Standard coating, powder coated :               Pitch                                    RAL               53 mm        1021               60 mm, 90 mm, 120 mm       5017        Other colors upon request. Conveyor Rollers        Ø 50 mm x 1.5mm roller, zinc plated finish.        Roller lengths 450 mm, 650 mm, 850 mm, and 1000 mm available.        Other roller lengths upon request. Roller Pitch        53 mmm, 60 mm, 90 mm, and 120 mm. Maximum Load        50 kg. Motorized Rollerdrive        24VDC Ø 50 mm zinc plated rollerdrive, 0.05kW. Circuit Board        Basic circuit board and ZPA circuit board. Load Sensor        Only included with ZPA circuit board. Sick GL6 type photoelectric sensors and Sick        PL10 reflectors. One set per zone. Close Position Sensor        Sensor IME18, male connector M12, 4-pin PNP included. Transmission        Roller to roller. PolyVee and round belt transmissions available. Rollerdrive Speed Code        15 (from 2m/min up to 20m/min), 25 (from 4m/min up to 20m/min) and 45 (from        6m/min up to 60m/min). Other speed codes upon request. Inclined/Declined        Not suitable. Horizontal application only. Load Travel Direction        Both. Conveyor Side Guides        Not included. Available fixed and adjustable side guides. Conveyor Supports        Not included with conveyor, specified separately. Operating Temp.        5°C to 50°C / 41°F to 122°F. ACCESSORIES        Fixed Side Guide, Straight.        Above the Frame Fixed Side Guide.        Adjustable Side Guide.
