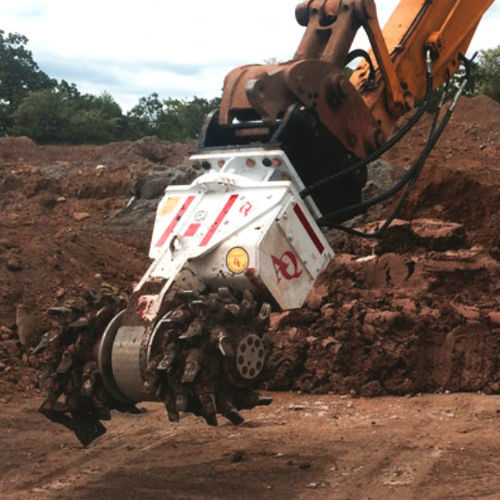

Excavator hydraulic milling cutter AQ-1S

The AQ-1S hydraulic drum cutter is Antraquip’s smallest transverse model designed to operate on mini-excavators and other compact hydraulic carriers. It’s small size yet continued ability to cut soft to medium hard rock, asphalt and concrete makes it an ideal tool for a broad variety of specialized excavation challenges. Technical Data - Unit - AQ-1S Cutting Head Diameter (B) - in (mm) - 9 (230) Cutting Head Width (A) - in (mm) - 19 (485) Oil Flow - gpm (l/min) - 5-12 (20-45) Max Pressure - psi (bar) - 5,800 (400) Max Torque - ft lbs (Nm) - 1,196 (1.620) Max Cutting Force - lbs (N) - 3,315 (14.750) Operating Weight - lbs (kg) - 265 (120)
