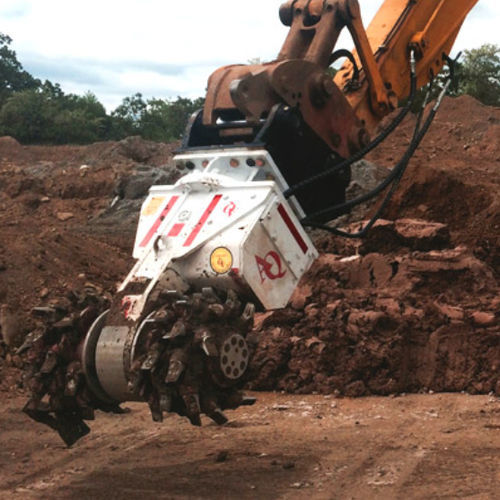

Excavator hydraulic milling cutter AQ-1

The AQ-1 hydraulic drum cutter head is a proven compact transverse model designed for small excavators and carriers. This machine offers an impressive amount of power and exceptional productivity when mounted on excavators in the 2-8t size class. Common applications include small trench excavation, precise concrete cutting, profiling and other specialized applications. Technical Data - Unit - AQ-1 Cutting Head Diameter (B) - in (mm) - 11 (280) Cutting Head Width (A) - in (mm) - 21 (535) Oil Flow - gpm (l/min) - 8-20 (30-75) Max Pressure - psi (bar) - 5,800 (400) Max Torque - ft lbs (Nm) - 2,625 (3.560) Max Cutting Force - lbs (N) - 5,717 (25.440) Operating Weight - lbs (kg) - 635 (290)
