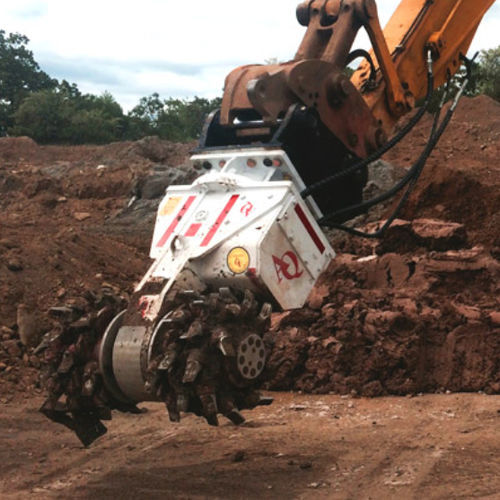

Excavator hydraulic milling cutter AQ-2

The AQ-2 model is a compact transverse hydraulic drum cutter that offers impressive cutting capabilities working in concrete and soft-medium hard rock for a variety of applications. This model transitions into the compact to mid size excavators size class and is capable of providing cutting performance that approaches those of bigger machines without sacrificing any level of precision. Technical Data - Unit - AQ-2 Cutting Head Diameter (B) - in (mm) - 16.5 (420) Cutting Head Width (A) - in (mm) - 25 (635) Oil Flow - gpm (l/min) - 12-26 (45-100) Max Pressure - psi (bar) - 5,800 (400) Max Torque - ft lbs (Nm) - 4,370 (5.925) Max Cutting Force - lbs (N) - 7,028 (31.275) Operating Weight - lbs (kg) - 1,035 (470)
