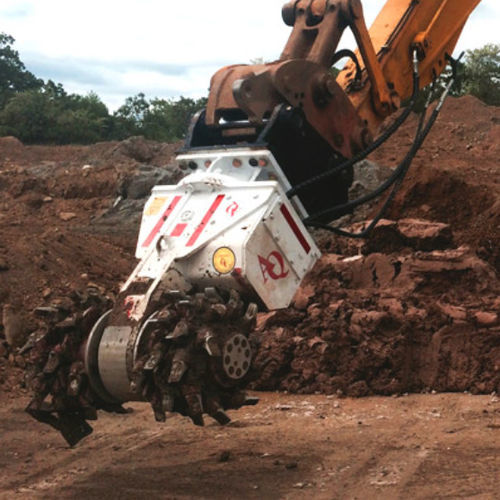

Excavator hydraulic milling cutter AQ-3

The AQ-3 hydraulic cutter falls into the mid-size category and one of the more popular models of Antraquip drum cutters and is capable of operating on 12-20t carriers. This cutter is designed to efficiently cut soft to medium hard rock as well as concrete and provide impressive production rates. Commonly used for scaling, trenching, mine development and concrete profiling. Technical Data - Unit - AQ-3 Cutting Head Diameter (B) - in (mm) - 22 (560) Cutting Head Width (A) - in (mm) - 31 (790) Oil Flow - gpm (l/min) - 30-45 (110-170) Max Pressure - psi (bar) - 5,800 (400) Max Torque - ft lbs (Nm) - 8,740 (11.850) Max Cutting Force - lbs (N) - 9,545 (42.475) Operating Weight - lbs (kg) - 2,045 (930)
