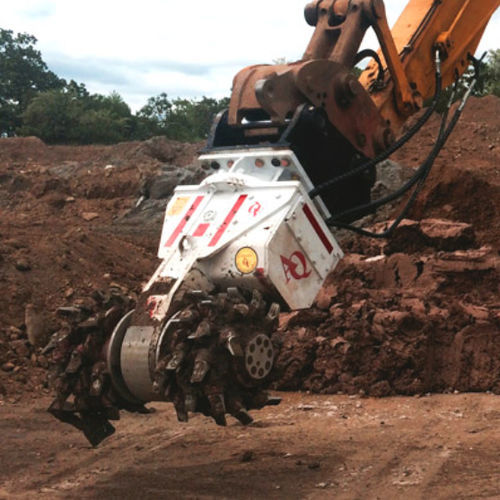

Excavator hydraulic milling cutter AQ-4XL

The AQ-4XL hydraulic drum cutter is an extremely popular model as it is an excellent fit for mid/large size excavators so commonly found on jobsites throughout the world (CAT 345/349, PC400/450 etc.). The impressive torque and cutting force output makes the AQ-4XL an excellent tool for mass excavation of medium to hard rock. Technical Data - Unit - AQ-4XL Cutting Head Diameter (B) - in (mm) - 28 (710) Cutting Head Width (A) - in (mm) - 49 (1.245) Oil Flow - gpm (l/min) - 65-130 (245-495) Max Pressure - psi (bar) - 5,800 (400) Max Torque - ft lbs (Nm) - 28,120 (38.125) Max Cutting Force - lbs (N) - 24,068 (107.105) Operating Weight - lbs (kg) - 5,775 (2.625)
