Excavator hydraulic milling cutter AQ-5

excavator hydraulic milling cutter
excavator hydraulic milling cutter
excavator hydraulic milling cutter
excavator hydraulic milling cutter
excavator hydraulic milling cutter
Add to favorites
Compare this product


Characteristics

Applications
for excavators

Description

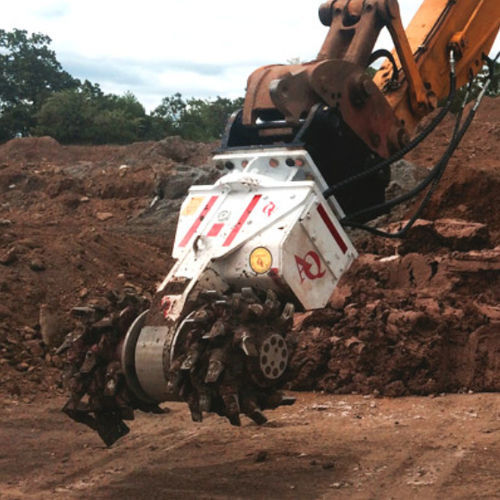

Entering the category of large excavators, the AQ-5 hydraulic drum cutter is an excellent option for carriers in the 50-80 ton weight class. The combination of power, and robust design of the transmission and cutting drums, the AQ-5 is capable of cutting many types of hard rock with excellent efficiency. Technical Data - Unit - AQ-5 Cutting Head Diameter (B) - in (mm) - 33 (840) Cutting Head Width (A) - in (mm) - 53 (1.345) Oil Flow - gpm (l/min) - 95-160 (360-610) Max Pressure - psi (bar) - 5,800 (400) Max Torque - ft lbs (Nm) - 39,310 (53.300) Max Cutting Force - lbs (N) - 28,686 (127.655) Operating Weight - lbs (kg) - 7,832 (3.560)

Catalogs

No catalogs are available for this product.

See all of Antraquip‘s catalogs
*Prices are pre-tax. They exclude delivery charges and customs duties and do not include additional charges for installation or activation options. Prices are indicative only and may vary by country, with changes to the cost of raw materials and exchange rates.
