Excavator hydraulic milling cutter AQ-6
Add to favorites
Compare this product
Characteristics
- Applications
- for excavators
Description

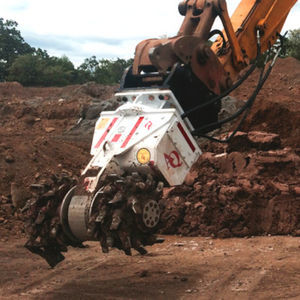

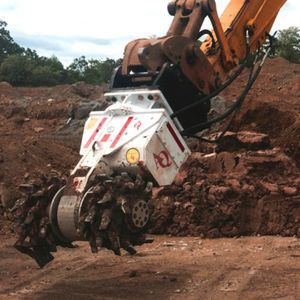

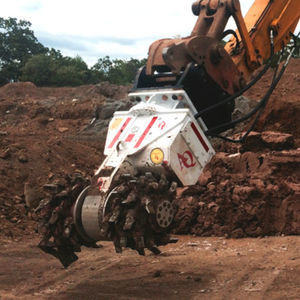

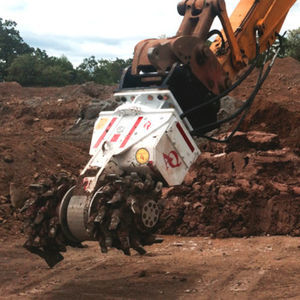

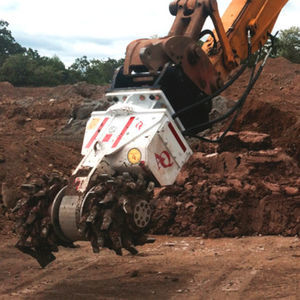

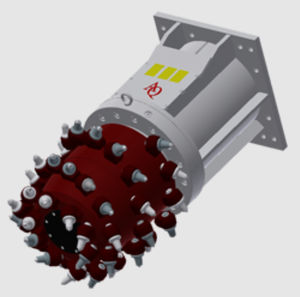

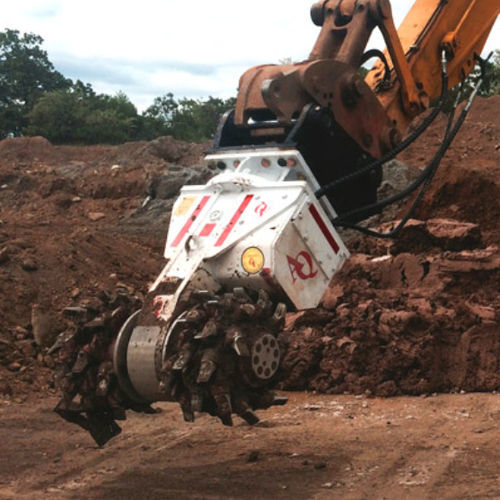

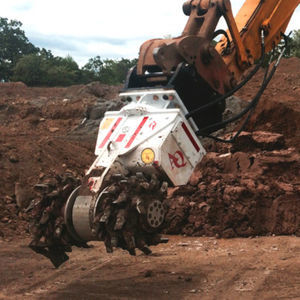

The AQ-6 hydraulic cutter is Antraquip’s largest cutting attachment and the most powerful and reliable machine of its size worldwide. For excavators in the 70-180 ton weight class this machine is an excellent option to maximize production rates mass rock excavation projects.
Technical Data - Unit - AQ-6
Cutting Head Diameter (B) - in (mm) - 40 (1.015)
Cutting Head Width (A) - in (mm) - 68 (1.730)
Oil Flow - gpm (l/min) - 175-260 (360-888)
Max Pressure - psi (bar) - 5,800 (400)
Max Torque - ft lbs (Nm) - 99,600 (135.040)
Max Cutting Force - lbs (N) - 62,112 (276.400)
Operating Weight - lbs (kg) - 14,350 (6.510)
