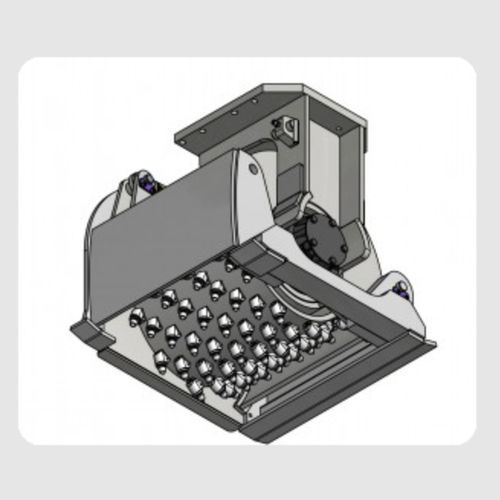

These machines are dedicated to work on asphalt and concrete surfaces for maintenance and cleaning of roads, squares, inside and external surfaces to a precise depth. Antraquip patch planers are available to be mounted on excavators and backhoe loaders of all sizes.
Technical Data - Unit - AQP30 - AQP45 - AQP60
Cutting Width,
Standard - in - 12 - 18 - 22
Max Cutting
Depth, Adjustable - in - 0-6 - 0-6 - 0-7
Recomended
Cutting Speed - rpm - 180 - 150 - 160
Hydraulic Oil
Flow (min-max) - gpm - 16-26 - 24-37 - 35-52
Maximum Operating
Oil Pressure - psi - 5,075 - 5,075 - 5,075
Weight,
approximate Recommended
Excavator Size - lbs - 900 - 1,600 - 2,900
Recommended
Excavator Size - tons - 6-10 - 7-11 - 12-18
