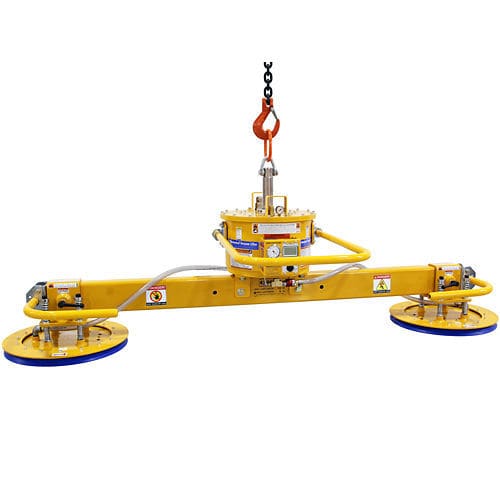

Frame vacuum lifting device L420M2-86

for sheet metalfor plateshorizontal

ANVER’S Standard Vacuum Lifters offer efficient material handling solutions by promoting functionality, safety, and ergonomic operations for a wide variety of applications and materials. Standard lifting frames are built to order from stock using modular components, so there are hundreds of possible combinations depending on the vacuum generator, beam, crossarms, and vacuum cups selected. Basic features on ANVER’s Standard Horizontal Vacuum Lifters include: vacuum leakage sensor and warning system; attach/release slide valve with safety lock; and locking hand knobs on the adjustable vacuum pad, slide assemblies, and crossarms (when applicable). ANVER Vacuum Lifters comply fully with and meet the standards of US ANSI ASME Standard B30.20 for below-the-hook lifting devices, as well as complying with OSHA and most European requirements. The L420M2-86 two-pad lifting frame is ideal for handling carbon steel and stainless steel sheets and plates with a capacity up to 4200 lb (1905 kg). This lifting frame is compatible with a Mechanical, Self-powered Vacuum Generator. Foam pads are not available for mechanical vacuum generators.
