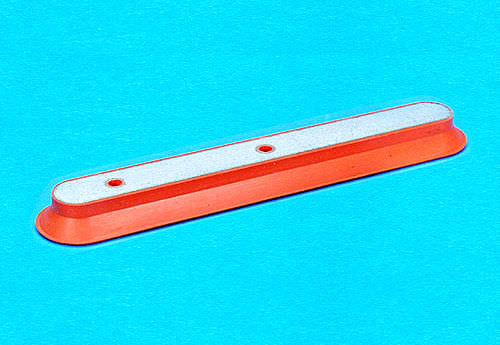

Oval vacuum suction cup OC55 series

handlingfor vacuumrubber

ANVER OC55 Series Oval Vacuum Cups consist of a natural rubber seal bonded to a long lasting aluminum hub. OC55 Series vacuum cups are commonly used for handling paper, cardboard cartons and wood, but are suitable for almost any vacuum handling application such as glass. The color of the seal is orange. These cups have a nice lip design and work well. Note: The actual suction cup width when pressed down under load is just under 2 1/2″ ( 64 mm) in width. Mounting: The vacuum cups come un-drilled and un-tapped with two locating holes only. These holes come sealed with rubber and can be used as a center or side vacuum port. If you drill through for mounting holes, make sure to seal the threads with a semi-hardening sealant. • The standard material is Natural Rubber (NR).
