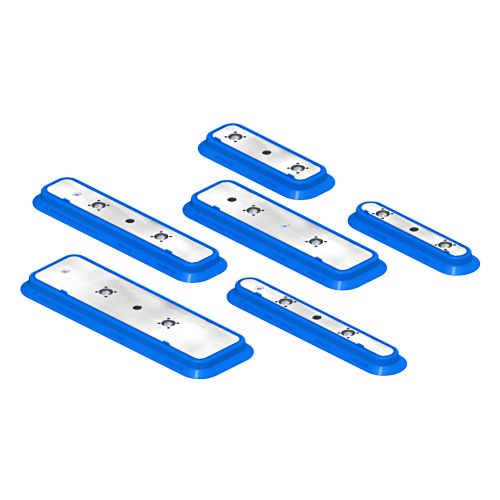

Oval vacuum suction cup OC12-128-NBR

rectangularPURNBR

• Easy-to-install replacement slip-on seals make maintenance simple and economical. • Short lip seals attach quickly and evenly. • Standard Ball Swivel or Rigid Mounting on all pads. • Cleated bottom maximizes capacity – excellent for both horizontal and vertical loads. These oval or rectangular vacuum cups with soft, long lips and deep profile are specifically designed for handling flat, rigid materials such as sheet and plate. They are also excellent for wood, composites, curved panels, stone and other materials. They feature an excellent, versatile design for most applications. They can be used individually or in series. • Vacuum Hub is a machined aluminum plate bonded to the cup. There is no leakage as all mounting holes are sealed on the bottom. • Vacuum Cup is supplied with pre-drilled and tapped mounting holes and a vacuum port. No drilling is required. • Vacuum Cups include an inside sealing ring for added security. Capacity is calculated from this inside seal for a strong conservative load rating. • The seal is bonded onto an aluminum hub. The standard materials are ANVERFLEX™ Polyurethane (PUR) and Blue colored NBR. Silicone is also available as shown, contact factory for more information.
