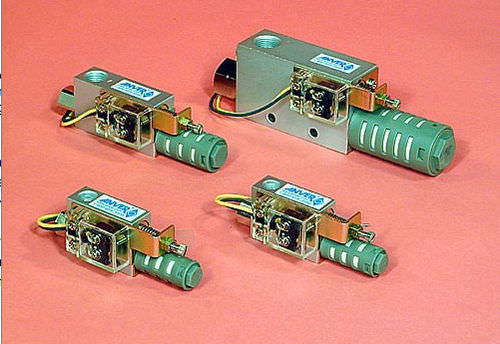

Venturi vacuum pump C-CV-CK series

single-stagecompactadjustable

ANVER C-CV-CK Series Single-Stage Vacuum Generators provide the same reliable features as the basic C-CV Series Vacuum Generator, but they include a mechanical vacuum switch for maximum control. With a machined aluminum body, brass internal nozzles, and compact design, these vacuum pumps offer an economical and reliable choice for your pick and place material handling applications. • No moving parts, compact, and maintenance-free • On/off control: Requires a separate air valve • Media: Non-lubricated air and non-corrosive gases • Operating pressure: 72 psi • Material: Aluminum body, brass nozzle, nitrile seals • Vacuum switch: Adjustable from 6″ to 16″ Hg • Switch accuracy: ± 1.6″ Hg • Hysteresis: 1.08″ – 3.90″ Hg • Circuit: Normally open • Switch output: AC 125V/5A, AC 250V/3A, DC 250V/0.2A
