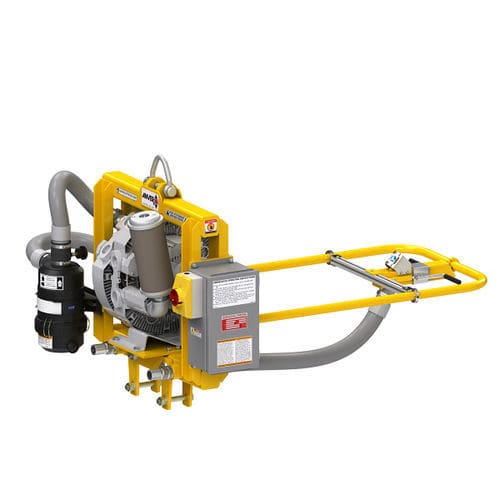

Frame vacuum lifting device VPHF series

industrialadjustableelectric

ANVER’s VPHF-Series of High-Flow Vacuum Generators are specifically designed and only suitable for porous applications where constant vacuum at the pads is required to hold the load. Materials such like plywood, OSB, particle board, wood bi-product panels, cement board and dry wall, foam core board etc. The VPHF-Series offers high capacity pumps, large filters and gauges for trouble-free operation in most demanding production environments. These vacuum generators are designed for use with a wide assortment of vacuum lifters pad attachments and lifting beams. The VPHF-Series features a sturdy welded frame construction and simple ruggedly built construction for lasting reliability in dusty industrial environments. A whole range of standard vacuum pads and pad attachments are available, however they all must be modified to be used with VPHF-Series high flow generators. This usually requires larger diameter vacuum hose, fittings and vacuum ports to handle the higher flow effectively. • Front Mounted Controls and Gauge Manifold vacuum gauge is mounted on manifold block for continuous monitoring by the operator. The electrical control box includes a master on/off switch and circuit breaker as 3 phase power required due to the size of the pump motors. Highly porous materials require high air flow only large vacuum pumps can achieve.
