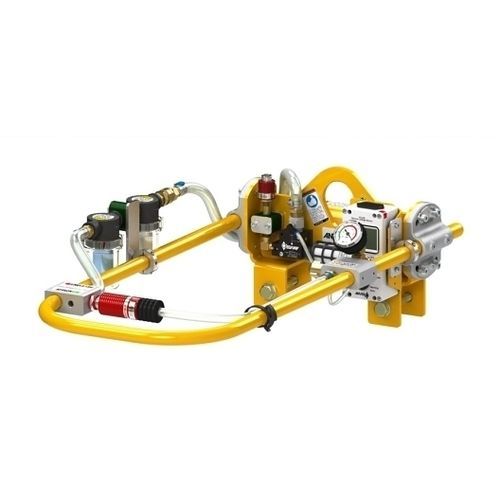

Frame vacuum lifting device VPFL4 series

horizontaladjustablepneumatic

ANVER’s Latest models of vacuum generators feature high capacity pumps, valves, filters and gauges for trouble-free operation in most demanding production environments. These light weight entry level units are designed for use with a wide assortment of vacuum lifters assemblies and pad attachments. The VPFL4-AIR Series features a sturdy welded frame construction and ruggedly built, yet affordably priced for unmatched value. • Air Powered Vacuum Generators No electric power required, operates using dry clean compressed air for vacuum generation. The vacuum generator incorporates a single stage venturi with no moving parts or rubber gaskets to maintain or replace. • Front Mounted Vacuum Gauge Manifold vacuum gauge is front mounted on manifold block for continuous monitoring by the operator. • Ergonomic Adjustable Front Handlebar Easy to grasp, large loop handlebar enables the operator to easily and safely maneuver the attached load without touching the load itself. Handlebar can be adjusted for smaller size loads. • Slide Control Valve with Push-Button Safety Lock The slide control valve assembly controls the vacuum attach and release and is mounted to the front handlebar for convenient access by the operator. The push-button safety lock is to keep the slide valve in the attach position while lifting a load to prevent accidental load release.
