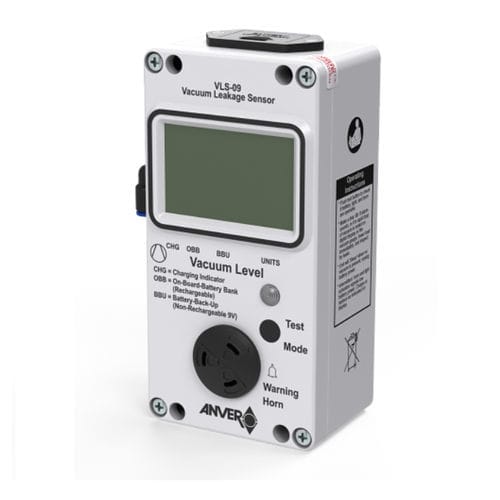

Gas leak detector VLS series

pressurevacuumwith digital display

The VLS monitors vacuum level of various systems. If the pre-set percentage of vacuum is lost during a lift, a loud horn sounds and a red light flashes to warn the operator. (NOTE: The alarm will not activate during release mode, or from a sudden catastrophic loss of vacuum.) ALL ANVER Vacuum Lifters, Tilters, and special vacuum lifting machinery, can be equipped with the new VLS Vacuum Leakage Sensor by means of connecting the vacuum source to be monitored with appropriate ¼” flexible tubing, (Part No. PC-T14, clear), to the ¼” push-to-connect vacuum input fitting. • Advanced Solid State Circuitry with state-of-the-art MCU control unit. • Precise, reliable, board mounted vacuum transducer. • Large LCD screen with large digits for highly visible, easy to read output. • Bright flashing Red LED Warning Light and Audible Warning Horn. • Rechargeable, long life, On-Board Battery Bank, (OBB). • Easy access replaceable 9V Lithium Battery Back-Up, (BBU). • Color segmented battery condition indicators for both On-Board and Replaceable batteries. • Fast, 2 hour, recharge of OBB, with optional AC/DC Charger/Adapter, (Part No. WS12DC). • Power Management logic; Operates directly and independently from 3 power sources, WS12DC AC/DC Adapter/Charger, OBB Battery Bank, or BBU Back-up Battery. (The OBB will automatically provide power when the AC/DC Adapter power is disconnected, and the BBU Battery will continue to power the VLS if the OBB Battery power is depleted.
