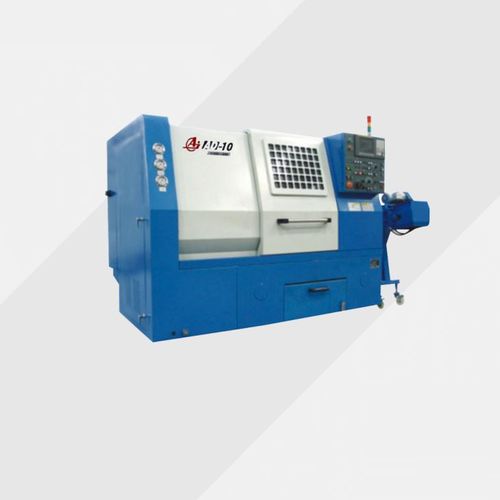

CNC lathe AD10

horizontal2-axisslant bed

This lathe machine bed adopts the international advanced integral slant bed structure, the guide way adopts the high precision rolling linear guide way, which ensures the high rigidity and high precision. It is suitable for high speed and high precision machining, the chip conveyor can be placed on the side or the rear. Bed material is HT300 cast iron that uses resin sand casting molding, 45 ° overall inclined bed structure. Headstock design has a good cooling and noise elimination function, and can be equipped with tool setting based on user’s requirements. Spindle uses the unit structure with front and double bearing support, the bearing brand is NSK made by JANPAN. The X and Z guide way use four-row rolling linear guide made in Taiwan, coupled with imported precision ball screw drive, ensuring high precision, high load capacity, high reliability, smooth operation, effectively improved the processing quality and tool life. Tailstock uses hydraulic tailstock, rectangular sliding guide structure , automatic top-tighten workpiece, it is reliable for processing a variety of slender shaft parts. Turret standard configuration is horizontal 8-station electric turret made by China's Yantai company. CNC system uses the internationally renowned FANUC system, the machine is fully enclosed protection, equipped with emergency stop safety button, when the machine suddenly encountered unexpected power failure or other failures, due to the special design of the control circuit, it can be self-protection , To ensure that the machine and personnel safety.
