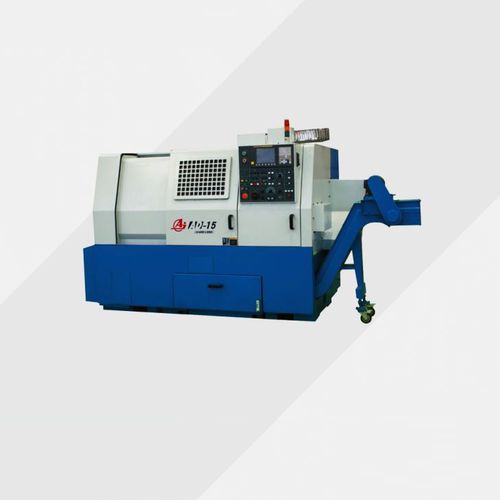

CNC lathe AD15

horizontal2-axisflatbed

This CNC lathe machine is mechanical and electrical integration structure, occupation is small and layout is compact and reasonable, the location of chip conveyor can be based on the user's needs placed on side or rear. Machine bed adopts box structure and MEHANITE Cast iron (HT300) one molding casting, and machined with imported high precision pentahedral machining center by one time clamping process, it has a big overall rigidity, maintains good accuracy and high reliability. The main motor and feed motor are both used FANUC servo motor to achieve the stepless speed change. Spindle motor uses FANUC latest P18 wide-area high-performance AC servo motor. Spindle bore diameter is 62mm, spindle material is chrome molybdenum alloy steel, and matched with large diameter grade-P4 high precision cylindrical roller bearings and high speed bevel contact ball bearings. Grade-C3 precision ball screw is configured to ensure the movement accuracy and position accuracy. Axis-X/Z equipped with high-speed precision linear guide way which is patented, together with FANUC series AC motor direct driven, makes the workpiece accuracy and roughness is perfect. Hydraulic tailstock , 8 inch dead hole hydraulic chuck together with high-speed cylinder made in Taiwan are standard configuration, and equipped foot switch makes the workpiece clamping easily, safely and reliably. Rough turning use hard jaw to clamp, finishing can use soft jaw. Hydraulic 8-station turret made in Taiwan is standard configuration. CNC system use the internationally renowned FANUC, SIEMENS or China GSK980TD AC servo control system.
