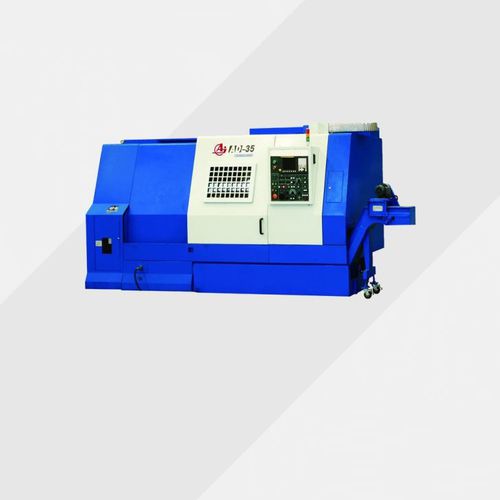

CNC lathe AD35

horizontal2-axisslant bed

This CNC lathe machine bed adopts box-shaped structure, one-piece molding casting technology, and 45-degree slant bed base. The turret is 12-position hydraulic turret made in Taiwan. Spindle motor uses Japan FANUC 50 / 6000i P-wide wide-area high-performance AC servo motor, stepless speed, spindle box without gear structure. 12-inch dead hole hydraulic chuck and high-speed fuel cylinder, and equipped with foot switch made in Taiwan, it is easy to install the workpiece. The Hydraulic Tailstock is standard equipment, tailstock sleeve is programmable. Hydraulic system components are imported. Axis X/ Z transmission system uses high-precision ball screw driven by FANUC AC motor directly, there are no belt and gear drive, avoided the backlash and vibration generated. CNC system uses the internationally renowned FANUC, SIEMENS or China GSK980TD AC servo control system. This CNC lathe machine has fully enclosed protection, and equipped with emergency stop safety button, when it suddenly encounters a sudden power failure or other failures, as a result of the special design of the control circuit, the machine can be self-protected to ensure the safety of itself and personnel. The operation panel is about 1500mm from the ground, it is highly moderate, ergonomic, pleasant and easy to operate and understand the operation of the machine.
