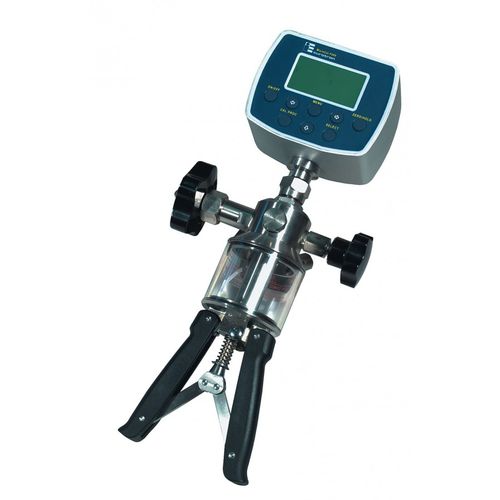

Pressure calibrator P200 PRO

for pressure gaugesprocessdigital

P200 PRO is a field calibrator that measures and generate pressure from -1 to 700 bars with an accuracy of 0.025% FS. It is developed for the calibration, verification and testing of pressure sensors and transmitters, manometers and pressostats. Besides, it measures and generates process voltage and current and has a Pt100 input for calibrating flow transmitters. - Leak test - Switch test - Calibration of transmitters and pressostats P200 PRO is a versatile, robust and handy instrument with its IP65 measurement head and removable pump. It is a comprehensive calibration system yet easy-to-use. It has an internal pressure sensor and accepts an external module in addition. It simultaneously displays the output pressure and input current or voltage, the pressure percentage, the pressostat status or the MIN / MAX pressure value. P200 PRO stores not only 1,500 measurement values but several calibration procedures, leak test or switch test procedures. The instrument is delivered in standard with a factory calibration report traceable to the national standards that states the nominal and actual values and deviation errors. The pressure calibrator is widely used and recommended for maintenance, regulation, metrology departments of process industries, energy field, applied or scientific research activities.
