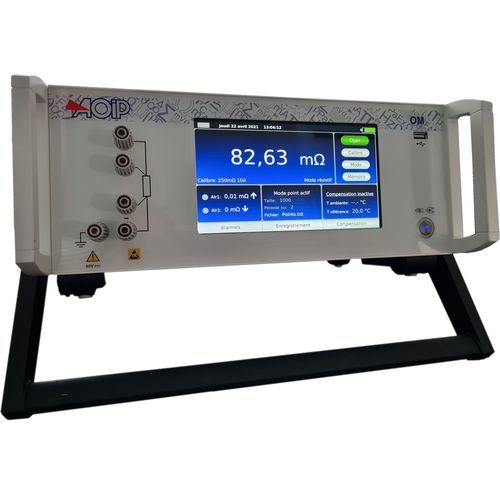

Digital micro-ohmmeter OM27

bench-top4-wirebattery-powered

In addition to on-site activities provided by the OM 17 micro-ohmmeter, the OM27 offers similar performance for test benches, laboratory tests and production tests. OM27 assures you Performance : • Measurement 4 wires of inductives and non-inductives resistances • Ranges from 5 mQ to 2.5 kΩ • Accuracy of 0.05% • Resolution of 0.1 µΩ Comfort: • Color touch screen • Ease of use • Information on measurement conditions in real time Versatillity : • Use on mains or battery • Accessible by software or on the instrument • Wide scope data storage Easy to use thanks to its color interface, it measures in 4 wires any inductive or non-inductive resistance with continuous or pulsed DC current up to 10 A. With an accuracy of 0.05% of reading and a resolution of 0.1 µΩ (on the 5 mΩ caliber), it covers a wide range of selectable Designed for use on site and in the workshop, on a platform or outdoors, the OM 27 micro-ohmmeter has a metal case giving it robustness and thus improving its reliability and availability. It is equipped as standard with a battery allowing it to also go on site to carry out measurement campaigns. It allows long measurement campaigns (up to 60 min) at 10 A in direct current and offers ranges from 5 mΩ to 2.5 kΩ
