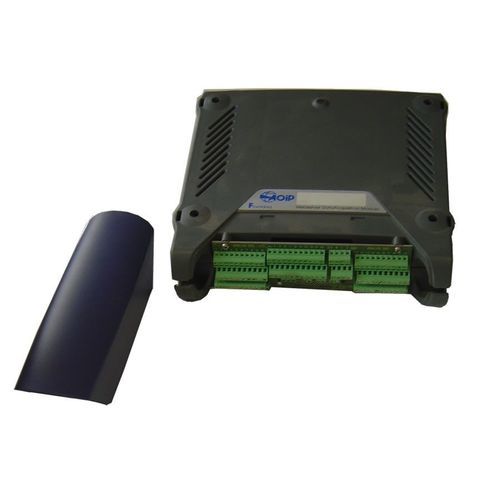

High-speed data acquisition module FRONTDAQ 20

temperaturevoltagemulti-channel

High speed acquisition module with universal synchronized inputs and embedded webserver software FrontDaq system is a high speed acquisition module (7680 Hz/channel) with 20 analogue synchronized inputs (1 A/D converter per channel) and 20 TTL inputs / outputs. • Process: Voltage, current, resistance, strain gauges • Temperature: Thermocouples, resistive probes • 20 universal analogue inputs, 2 limits per channel, • 4 analogue outputs, 20 TTL inputs / outputs • 5 configurable triggers • Communication: Ethernet TCP/IP, RS 232, USB (GSM / GPS in option) FrontDaq system is a high speed acquisition module (7680 Hz/channel) with 20 analogue synchronized inputs (1 A/D converter per channel) and 20 TTL inputs / outputs. All necessary configuration and management software (WEB server technology) are embedded into the plug-and-play system and allow remote control of the acquisition through any web browser: Setup, start, result display, monitoring and data exportation. FrontDaq 20 memory capacity (internal of 660,000 samples / channel and external via CF card, allows several months of data to be recorded. FrontDaq 20 meet therefore the various requirements of monitoring and survey applications on the field as well as on test bench. FrontDaq 20 perform measurement, monitoring and recording of analogue and digital signals coming from sensors of physical or electrical values. These signals can be: • Voltage: 0-10 V • Current: 0-20 and 4-20 mA with external shunts • Thermocouples: Type K/T/J/N/E/R/S/B with or without cold junction compensation • Resistance: 2400 Ω • RTD: Temperature sensors (Pt100 / 500 / 1000) in 2, 3 or 4 wires
