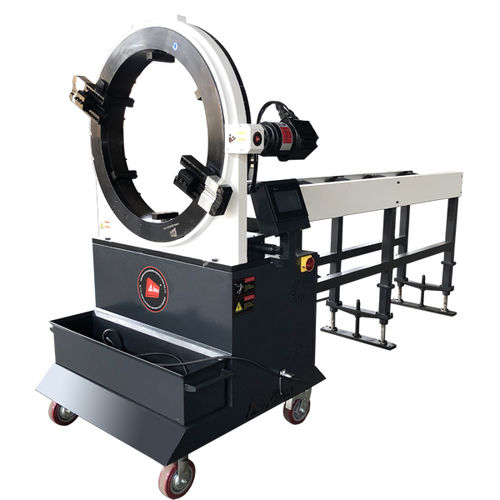

Portable pipe cutting and beveling machine SD series

OVERVIEW OSD/KSD Portable-bench pipe cutting and beveling machine is a portable and bench machine. It was developed cutting and beveling for pipe prefabrication. The main machine can be fixed on the bench in workshop, and it also can be used to field cutting and beveling with option our car type bench. Adopt variable frequency motor or servo motor drive, self-centering clamping system. It is suitable for the processing of U, V, J, Y and beveling shape of carbon steel, stainless steel and alloy steel pipes. New design, easy to control, the cutting and beveling system can be changed to orbital cutting system or welding system. it will become a orbital pipe cutting machine or pipe welding machine. FEATURES 1、8 models are available in pipe OD:20-720mm 2、Cold cutting, don’t influence the pipe’s material 3、Self-centering clamping with multi point jaws 4、Automatic feed and manual feed can be optioned 5、one-piece body,makes it possible to high speed cutting 6、Varity of beveling shape: “U”,“V”,“J”, double “V”, compound bevels 7、Cutting and beveling，and can be used for cutting, beveling, double beveling 8、Change the cutting and beveling system can be change to orbital pipe cutting system 9、Change the cutting and beveling system can be change to pipe welding system 10、KSD model driven by Servo motor, PLC control system, and with touch screen controller CAPABILTY Pipe cut off Pipe end beveling Pipe facing Cutting and beveling Compound beveling Counterboring Grooving
