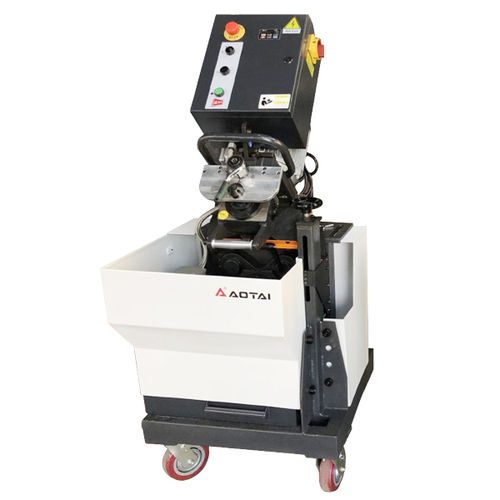

Electric beveling machine SKF-900

mobilemetal platestainless steel

OVERVIEW SKF-900 Automatic plate beveling machine, designed for metal plate prep-welding, to beveling, chamfering and milling. For small size plate, machine fixed, plate feed and process automatically; For large size plate, plate fixed, machine along the edge of the plate process automatically. The machine can be suspended process without a base when the working height is not standard, This machine adopts milling method, a powerful, widely used steel plate grooving equipment. Small volume, light weight, move easily, simple operation, the essential production equipment of nuclear industry, shipbuilding, pharmaceutical machinery, pressure vessels and other industries fields. FEATURES 1、Beveling shape: V, Y,K,X. 2、Angle adjustable: 15deg to 60deg. 3、Surface roughness: Ra3.2-Ra6.3 4、Cold cutting, don't change the material of plate. 5、Plate thickness range 8-50mm, maximum groove slope width is 45mm 6、Suitable for carbon steel, stainless steel, alloy steel, Cast iron, hard plastic, etc. 7、Double digit display control system, cutting speed and feeding speed adjustable.
