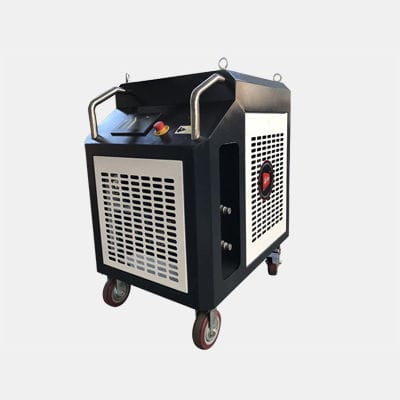

Electrically-powered hydraulic power pack YYZ-XK-19E
wheel-mounted

Electrically-powered hydraulic power pack - YYZ-XK-19E - Aotai Machine Manufacturing Co., Ltd - wheel-mounted

Add to favorites

Compare this product

Characteristics

Power source: electrically-powered
Other characteristics: wheel-mounted
Operating pressure: 130 bar
(1,885 psi)
Nominal power: 8 kW
(10.9 hp)
Flow rate: 28 l/min
(7.4 us gal/min)
Tank capacity: 120 l
(31.7 gal)

Description

Hydraulic motor and hydraulic power packs With more than 20 years' research and production of the portable machines,such as pipe cutting & beveling machine and the Flange facing machine, AOTAI takes lead in applying hydraulic drive and servo motor to these portable machines, realizing remote control and ensuring the machine more powerful and stable. It is warmly welcomed by the end users and copied by other manufacturers. Hydraulic power pack Standard：YYZ-XK-19E Suitable for all working condition Rated Pressure:13MPa Rated flux:28L/min Electric power：7.5KW,380V-3ph,50Hz Oil capacity：120L Hydraulic oil：Winter 32#， Summer 46#
