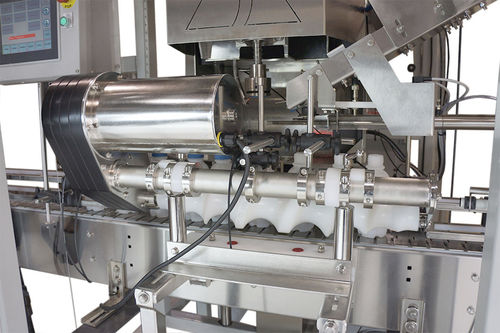

Linear screw-capping machine

automaticservo-controlledfor glass bottles

This Automatic Chuck Capper sorts, places and torques caps. Caps are individually picked up by the mechanical swing arm and moved to the capping head. The container then moves under the capping station as the cap is accurately placed and torqued onto the bottle threads. This machine is intended for production speeds of 10-15 per minute for bottles up to 4" diameter and caps up 53mm. Components for larger bottles/caps will be quoted upon review of samples. Cap Feeding and Sorting Systems are sold separately for configuration purposes. Standard Features: Easily set torque Using 7" wide touch screen HMI Custom torque feedback Custom data input to record each packaging event, to include: Batch: 10 numeric characters Process Order: 7 or 8 numeric characters Material Number: 7-11 alphanumeric characters and random hyphen Storage: Minimum 50 packaging events per week Memory indicator Ethernet capability for data download USB for data download Low-cap, out-of caps lightstack with line pause Audible alert kit Servo chuck head with chuck tip for one cap size Stainless steel frame, plate/block components are anodized aluminum
