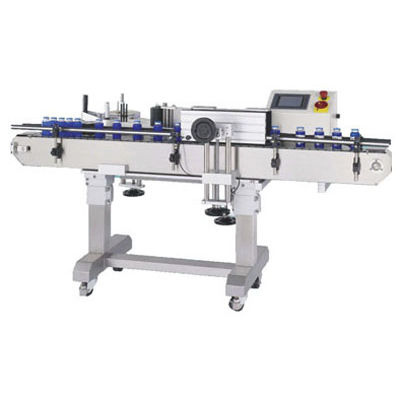

Automatic labelling machine LAW-5010-PLsidefor self-adhesive labelslinear array
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Label positioning
- side
- Type
- for self-adhesive labels
- Other characteristics
- linear array, vertical, wrap-around
- Throughput
150 p/min
Description
The LAW-5010-PL dispenses pressure-sensitive labels at a rate of up to 150 labels per minute (LPM) with extreme accuracy. This automatic labeling system comes equipped with a 7 ft. variable speed conveyor. Additional features include, a stepper motor drive for label, power assisted web take up, full wrap around or tamp station, auto speed adjust (all motors synchronized), and Photo Eye (non contact) sensors for label gaps and containers.
Features
Specification
Voltage 110/220 VAC 50/60 HZ 1 PHASE
Power 760VA
Controls Netcon Touch Screen
Conveyor Speed 20 M/MIN
Dispensing Speed 40 M/MIN
Drive Stepper Motor
Applicator Height 150/220 MM
Label Size 150 MM x 300 MM MAX
Conveyor Width 110 MM
Spool Diameter 46/76 MM
Optional Hot Foil Printer
Dimensions
Length 2,000 MM
Width 1,120 MM
Height 1,050 MM
