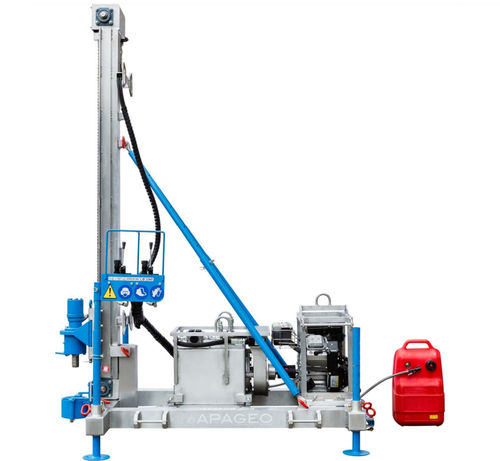

Core drilling drilling rig APAFOR® 200

geotechnicalportablerotary

SKID AND EQUIPMENT Aluminum frame with 4 handles for transportation 4 adjustable stabilization feet insteel Steel adjustable arms for tilted drilling from 0 to 45° MOTORIZATION VANGUARD engine 16 HP ordiesel engine 19 HP PERFORMANCES Rotation speed 0 to 360 rpm In option 0 to 480 rpm Max torque 127 daN.m Pull-up force 1200 daN OTHER PERFORMANCES AVAILABLE ON REQUEST APPLICATIONS Rotary with auger, rotary bit and DTH drilling Coring in small diameter at shallow depths APAFOR® 200 THE + Portable rig, ultra – light, easily transportable rapidly disassembled and reassembled for very difficult site access and confined space Very attractive power-weight ratio Vertical and tilted drilling to 45° MODULAR DRILLING RIG COMPOSED IN 6 PORTABLE COMPONENTS TO ALLOW WORKS IN VERY DIFFICULT SITE ACCESS Portable rig easily transportable thanks to its configuration: 6 modular components easily and rapidly disassembled and reassembled as well as a petrol tank Perfect for very difficult site access and confined space Vertical and tilted drilling to 45°: Unique for a portable rig! Adjustable stabilization feet (every 50cm) to work in sloping areas Very attractive power‐weight ratio
