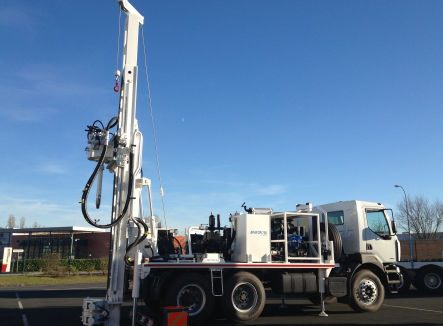

Core drilling drilling rig APAFOR® 700

geotechnicalgeothermaldeep

SKID ANDEQUIPMENT Mechanically welded steel frame integrated to carrier 4 hydraulic jacks for stabilization Control over operating panel or articulated arm Hydraulic injection pump (performances according to model, until 2200 l/min) MOTORIZATION Engine from 90 to300 HP (according tomodel) PERFORMANCES Pull-up force 8 to 25 tons Torque from 800 to 2000 daNm Rotation speed from 200 to 800 rpm OTHER PERFORMANCES AVAILABLE ON REQUEST DATA ACQUISITION (IN OPTION) ExploFOR® APPLICATIONS Destructive drilling in rotary – injection, Down The Hole Hammer and auger RC drilling (reverse circulation) Conventional and wireline coring Optimum for deep water wells drilling, geothermal, foundations and mining APAFOR® 700 THE + Drilling in large diameter and high depth until 500 meters and more (depending on diameter) Configuration on truck (any type, tropicalized on request...), crawler or skid Specific technical optimum characteristics accordingto customer's needs. Turnkey complete offer if wished (with equipments,air compressor, porter, etc...) The models APAFOR® 700 represent a range of powerful drilling rigs mainly dedicated to water wells drilling in large diameter at high depth. Those models can also be adapted to high depth mining sampling, or deep geotechnical investigations, or even very large diameter drillings for foundation. All depends on customer’s requirement.
