Signal analyzer SIX series
audiofor testingcolor

Signal analyzer - SIX series - Apantac LLC. - audio / for testing / color
Signal analyzer - SIX series - Apantac LLC. - audio / for testing / color
Signal analyzer - SIX series - Apantac LLC. - audio / for testing / color - image - 2
Add to favorites
Compare this product


Characteristics

Measured entity
signal
Application domain
audio, for testing
Measured value
color
Configuration
handheld
Other characteristics
digital, dynamic, multichannel

Description

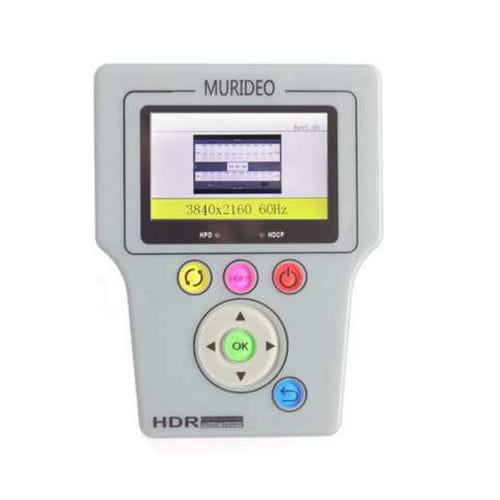

Analyze any HDMI/DVI signals up to 40Gbps (7680x4320P60) Test HDMI/DVI Cables up to 40Gbps, full TMDS testing View up to 40Gbps Video Content and Format Info Analyze & Report HDMI Distribution System over Time (minutes, hours, days) down to the Pixel Audio Confidence Tests (2-Channel & Multichannel) Advanced EDID Analysis & Tools Read, Write EDID Analyze HDR Signals & Metadata Report & Analyze InfoFrames HDCP Tester – 2.3, 2.2, 1.4, None 8K@60 4:2:0 10-bit Maximum Resolution Fixed Rate Link (FRL) Color Space Selectable Full Range RGB (0-255) SMPTE RGB (16-235) YC444, 422, 420 (16-235) Auto Detect (read EDID – display preferred format) High Bit Depth – 8, 10, 12, and 16 bit per pixel support HDR (High Dynamic Range) Support Multiple HDR Memories HDR 10, 10+ HLG Dolby Vision testing Custom HDR Memory BT. 2020 Wide Color Gamut (WCG) Support HDCP Content Type Selectable Type 0 – Type 0 content can pass over any version of HDCP ( 1.X or 2.X) – like 1080P – all 1080P content is type 0 Type 1 – Type 1 content requires mandatory HDCP UHD movies at type 1. Scramble Mode Selectable Select 1 for testing TMDS Character Rates >340 Mcsc (over 10.2Gbps) Select 0 for testing TMDS Character Rates <340Mcsc (under 10.2Gbps) Note: Scrambling for EMI/RFI Reduction. Scrambling is done in all the three data channels - TMDS channels 0, 1, and 2. EMI/RFI reduction in the TMDS clock channel is achieved by reducing clock frequency to one-fourth and reducing the clock amplitude. By default, the scrambling is enabled in HDMI 2.0 at TMDS bit rates above 3.4Gbps to 6.0Gbps. The Source enables scrambling for TMDS rates below 3.4Gbps if both the Source and the Sink support
