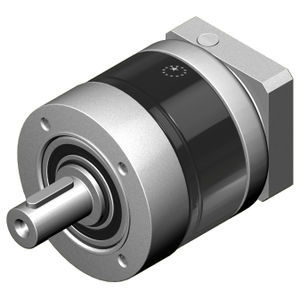

Planetary gearbox AP seriescoaxial200 - 500 Nm500 - 1000 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 500 - 1000 Nm, > 10 kNm, 1 - 2 kNm, 2 - 5 kNm, 5 - 10 kNm
- Configuration
- flange
- Number of stages
- three-stage
- Performance
- high-precision
- Rotational speed
Min.: 2,100 rpm
(13,194.69 rad.min-1)Max.: 7,000 rpm
(43,982.3 rad.min-1)- Backlash
0.02 °, 0.03 °, 0.05 °
- Gear ratio
Min.: 5.5 unit
Max.: 220 unit
Description
High Torque
Optimized Output Torque & Inertia Moment
High Precision
Long Service Life
Low Noise
Limited Temperature Rise
Support Flange/Curvic Interface
Suitable for Rack & Pinion Applications
Catalogs
AP / APK APC / APCK - SERIES
24 Pages
