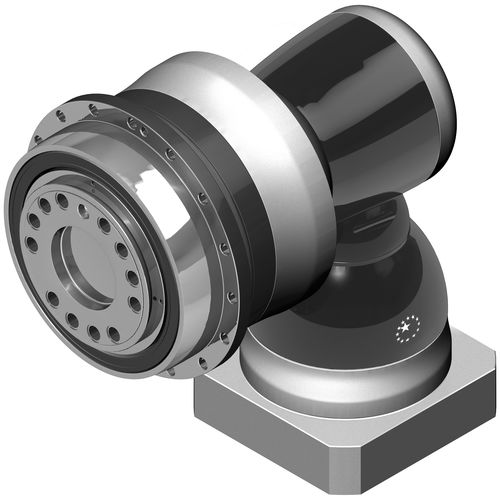

Planetary gearbox AHKA / B Seriescoaxial200 - 500 Nm100 - 200 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, > 10 kNm, 1 - 2 kNm, 2 - 5 kNm, 5 - 10 kNm
- Number of stages
- three-stage
- Performance
- high-efficiency, low-noise, high-precision
- Rotational speed
Max.: 7,000 rpm
(43,982.3 rad.min-1)Min.: 1,000 rpm
(6,283.19 rad.min-1)- Backlash
0.03 °
- Gear ratio
Max.: 1,000 unit
Min.: 64 unit
Description
High efficiency
Low noise
Reduced backlash
Optimized Inertia moment
Limited temperature rise
Long service life
Flexible mounting diameters
Optimized output torque
