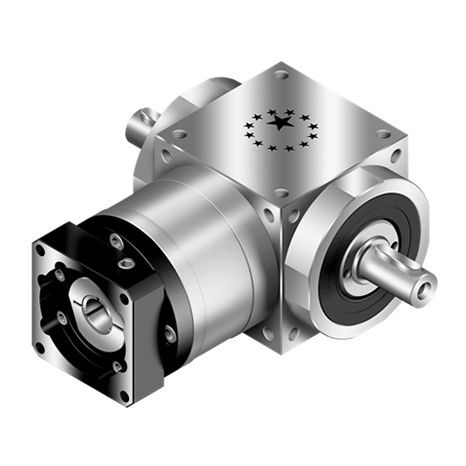

Bevel gearbox AT-FL serieshelical gearright angle200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- bevel, helical gear
- Shaft orientation
- right angle
- Torque
- 200 - 500 Nm, 100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm, 10 - 20 Nm, 2 - 5 kNm
- Rotational speed
Max.: 8,000 rpm
(50,265.48 rad.min-1)Min.: 1,700 rpm
(10,681.42 rad.min-1)- Backlash
0.1 °, 0.13 °, 0.17 °
- Gear ratio
Max.: 500 unit
Min.: 1 unit
Description
Various housing design
Stainless - AT
Carbon Steel - ATB
Various output options
High torque
High efficiency
Long service life
Reduced backlash
Maintenance free
Flexible mounting dimensions
