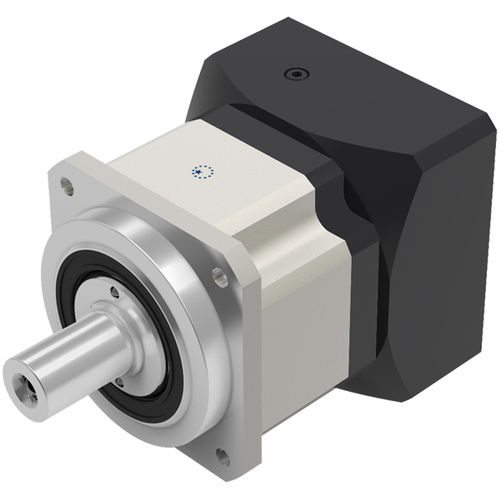

Planetary gear reducer AB serieshelical gearcoaxial200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Torque
- 200 - 500 Nm, 20 - 50 Nm, 100 - 200 Nm, 50 - 100 Nm, 500 - 1000 Nm, 1 - 2 kNm, 10 - 20 Nm
- Configuration
- compact
- Performance
- precision
- Applications
- transmission
- Rotational speed
Min.: 2,000 rpm
(12,566.37 rad.min-1)Max.: 10,000 rpm
(62,831.85 rad.min-1)- Backlash
0.02 °, 0.05 °, 0.08 °, 0.12 °
- Gear ratio
Min.: 3 unit
Max.: 100 unit
Description
1. True Helical Gear Design
Precision helical gearing increases tooth to tooth contact ratio by over 33% vs spur gearing. The helix angle produces smooth and quiet operation with decreased backlash (less than 1 arc-minutes and ≤ 56dB).
2. Triple split collet with dynamic balanced set collar clamping system
provides backlash free power transmission and eliminates slippage. 100% concentricity allows for smooth rotation and higher input speed capability.
3. Bushing module system design
The unique motor adapter and bushing module system design allows for quick and easy mounting of any motor.
4. A special non-electrolysis Nickel surface treatment
A special non-electrolysis nickel surface treatment on the output housing and black anodized aluminum input adapter are provided for the most extreme environmental conditions.
