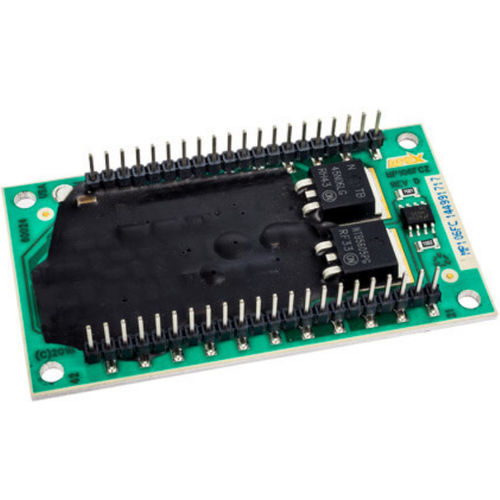

The MP106 is a high output power amplifier optimized for driving negative voltages. Rated with a 0 to 540nF drive capability, the MP106 is tailored for dynamically changing loads, such as capacitive loads used in piezo devices for inkjet printing applications, such as Dimatix "Samba" or similar heads. This amplifier is an open frame product design featuring a small footprint measuring just 73.4mm x 41.4mm and capable of up to 130W of internal power dissipation.
High slew rate 50V/µs
Drive capability 0-540nF
Maximum internal power dissipation 130W
Small footprint open frame packaging
