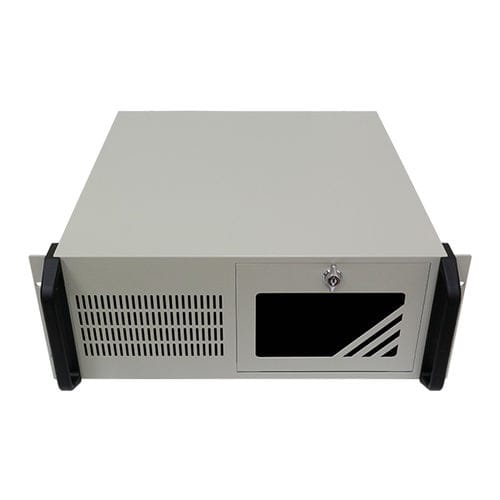

Machine vision system PC AVS-700Edge AIrack-mountIntel® Core i5
Add to favorites
Compare this product
Characteristics
- Type
- Edge AI
- Configuration
- rack-mount
- Processor
- Intel® Core i5, Intel® Core i7, Intel® Core i3, 9th Generation Intel® Core™, Intel® Xeon
- Ports
- USB, HDMI, VGA, DisplayPort, Mini PCIe, PCI Express, USB 2.0, RS-232, RS-485, 3G, USB 3.1, ATA, 5G, SATA
- Operating system
- Linux, Windows 10 IoT Enterprise
- Size
- 4U
- Domain
- for automation applications, machine vision, for machine vision systems
- Other characteristics
- GPU-Based
Description
4U Rackmount Chassis for ATX/microATX Motherboard
Up to 1 x 3.5"/2.5" SATA Drive bay and 3 x Optical Drive bays
Front-accessible System Fan and USB Interfaces
Supports 7 Expansion slots
3 Independent Displays: VGA & DP++ & DP++
DP++ Resolution up to 4096 x 2160 @ 60Hz
Power Input 500W PSU (100V~220V AC-IN)
Operating Temperature 0˚C~45˚C
Storage Temperature -20˚C~60˚C
Operating Humidity 0 to 90%@, non-condensing
Storage Humidity 0 to 90%@, non-condensing
Vibration 1Grms/5~500Hz operating; Sweep Sine 10~500Hz 1.5G
non-operating
Shock 3G operating; 5G non-operating
Certificate CE,FCC, RoHS
