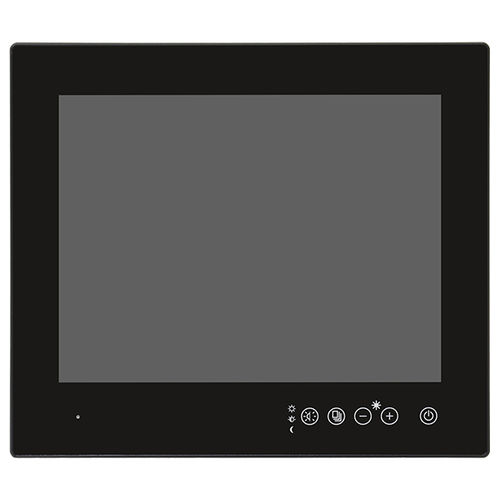

Capacitive touch screen panel PC ViKING-912B

12.1"1024 x 7688th generation Intel® Core™ i5

True Flat Bezel Design Aluminum Enclosure (with Anti-Corrosion Coating) DC 24V Power Input with Isolated IEC 60945 Marine Certification Specifications System Chipset SoC TPM TPM 2.0 IO Port USB 4 x USB 3.0 type A Serial/Parallel 1 x RS-232 (COM1, 5-pin terminal block) 1 x RS-232/422/485 Selectable Default RS-485 (COM 2, 5-pin terminal block) 1 x Display Port 1 x Line-out, Phone Jack 1 x ESD Ground Power Connector 1 x 2-pin Terminal Block Connector (for remote power switch) 1 x 3-pin Terminal Block Connector Front Side I/O Keypad Capacitive Touch with LED ‧Power ‧Brightness+ ‧Brightness- ‧Brightness Mode Swap (DAY, DUSK, NIGHT) 1 x Buzzer Storage Space Storage Default: 1 x M.2 M-Key 2242(option 2280 can’t use TB-528 at same time) 1 x 2.5" HDD space (option) Expansion On board expansion bus 1 x TB-528 Expansion Connector (for 19”/24” only) option TB-528C2I for Isolation 2 x RS-422/485 Isolation Power Power Input DC 24V with Isolated / AC Power option Mechanical Construction Black/ Aluminum Bezel and Aluminum Housing (Anti-Corrosion Coating) Dimensions 307 x 266 x 72.5 mm Net Weight 3.6 kg Environmental Operating Temperature 0~50°C (WT1: -20~60°C for optional) Storage Temperature -30~70°C Humidity 10 to 90% @ 40°C, non-condensing Certificate CE/FCC/IEC 60945
