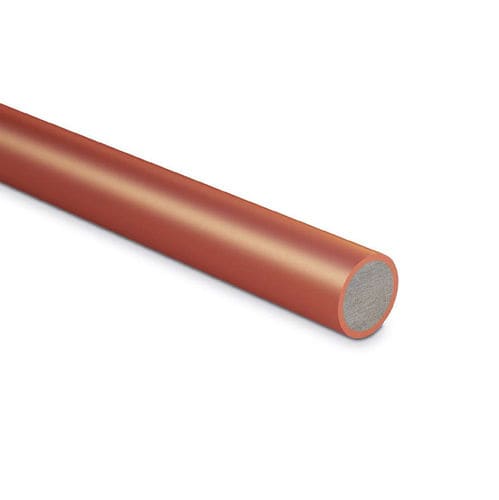

Round electrical cable AT-230Dstrandedcoppersolid
Add to favorites
Compare this product
Characteristics
- Configuration
- round, stranded
- Core material
- copper
- Number of wire
- solid
- Other characteristics
- coated, grounding
Description
35 mm² copper coated steel cable.
Stranded cable is easier to install than solid round conductor.
Copper-steel conductors (Cu 25%) maintain the electrical characteristics of the electrolytic copper, along with the best mechanical properties of steel.
• Dimensions : 35 mm²
• Weight per meter : 300 g/m
• Materials : Copper-steel
• Stranded : 7 x ø2.6 mm
• Sheath : Bare
• Effective area : 37.2 mm²
• Conductivity : 30% IACS
• Maximum resistance at 20°C : 1.55 Ω/km
• Breaking load : 1040 daN
• AWG section : 2
• Copper area : 25%
• Steel area : 75%
• Density : 8.08 g/cm3
• Modulus of elasticity : 183 GPa
• Coefficient of linear expansion : 1.84·10-5 °C-1
