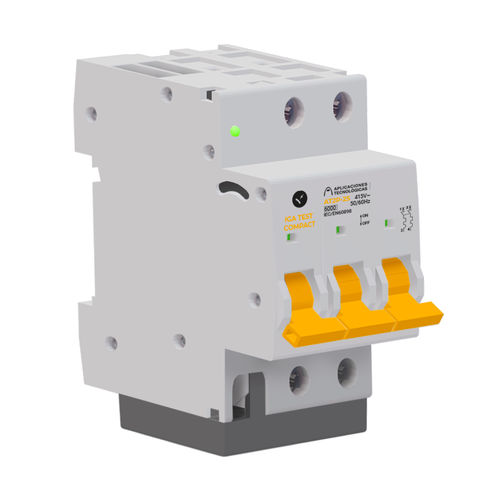

Type 2 surge protector IGA TEST COMPACT M 40
for power suppliescompactsingle-phase

type 2 surge protector
type 2 surge protector
Add to favorites
Compare this product


Characteristics

Type
type 2
Applications
for power supplies
Other characteristics
compact, single-phase, DIN rail
Voltage

230 V, 400 V

Primary current

40 A

Open circuit voltage

275 V, 400 V

Description

IGA TEST COMPACT protectors cut off the power supply when they detect a permanent overvoltage , (for example, a fault in the neutral), thus protecting the equipment installed downstream. Moreover, they also actuate when they detect a transient overvoltage, driving the current to earth and reducing the voltage to a level that does not damage the connected equipment. Tested and certified as protector Type 2 in official and independent laboratories according to standard EN IEC 61643-11. Certificated tests according to the standard: UNE-EN IEC 61643-11 UNE-EN IEC 60898 UNE-EN 50550 (POP) Relevant standards: UNE 21186, UNE-EN IEC 62305 Products compliant with EC requirements.
