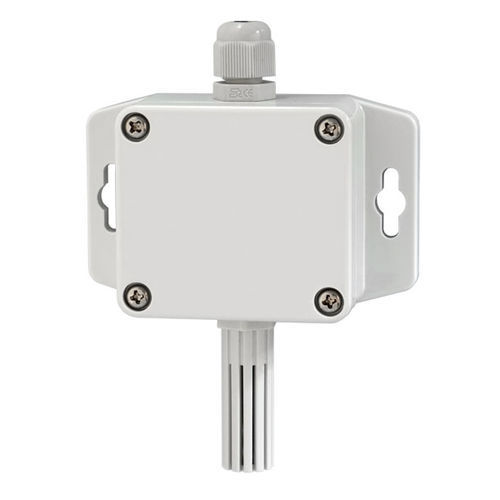

Relative humidity transmitter AR250wall-mount4-20 mA0-10 V
Add to favorites
Compare this product
Characteristics
- Type
- relative
- Mounting
- wall-mount
- Output
- 4-20 mA, 0-10 V
- Protection level
- IP65, IP40
- Measuring range (%)
Min.: 0 %
Max.: 100 %
- Precision
2 %
- Working temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)
Description
Humidity transducer, current output 4÷20mA or voltage output 0÷10V, wall-mounted housing IP65
Product Description
• - high quality digital sensor of the relative humidity with protective filter (ABS housing as a standard and the stainless steel mesh - 0.15 mm)
• - high accuracy and resistance to interference occurring in industrial environments
• - measurement range 0÷100 %RH
• - analogue output 4-20mA or 0-10V
• - polycarbonate housing (IP65), dimensions: 94x58x35mm
• - measurement accuracy: ± 2% RH (in the whole measurement range)
• - hysteresis: ± 0.8% RH
• - response time (63%): 8s (airflow> 3.6km / h)
• - measurement period: 1s
• - operating conditions: -30 ÷ 80 °C
