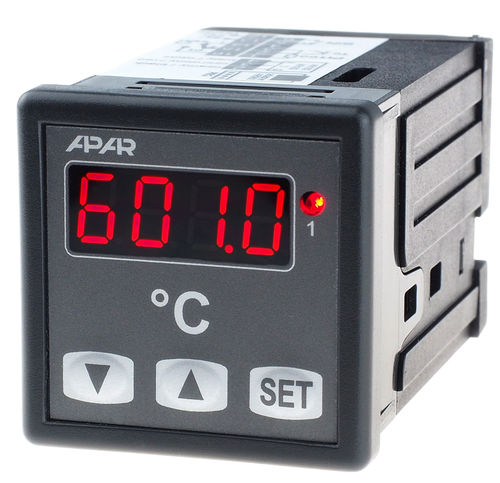

Temperature regulator with LED display AR601

PIDprogrammableIP65

Temperature controller, universal input, 1 relay output/SSR, ON-OFF, PID, panel-type 48x48mm Product Description • - microprocessor temperature controller for adjusting the fixed setpoint • - high accuracy and resistance to interference occurring in industrial environments • - universal thermometer input: o - thermoresistance Pt100 o - thermocouple J, K, S, R, T, B, E, N • - 1 control output relay or SSR • - ON-OFF control with hysteresis, PID, PID AUTO-TUNING • - programmable input, range of indications and other parameters • - option of protecting access to the configuration of parameters with password • - option of blocking changes to the set values • - software digital filtering • - manual mode for output control (on-off type) • - LED display, digit height: 9 mm, brightness adjustment • - signalling: o - detected errors: messages on the display o - relay activity: red LED • - measurement accuracy: o - 0.2% of the measurement range ± 1 digit o - thermocouple inputs: 0.3% of the measurement range ± 1 digit and additionally <2°C (temp. of cold ends) • - response time: 0.5÷2 seconds (depending on the digital filtering level) • - power supply: o - 230Vac (85÷260 Vac) / 3VA o - 24Vac/dc (18÷72Vdc/3W, 15÷50Vac/3VA) • - operating temperature range: 0÷50°C • - relative humidity range: 0÷90% (no condensation) • - panel housing INCABOX XT 48x48x79 mm • - ingress protection rating: IP65 from the front, IP20 from the connectors • - material: polycarbonate, NORYL 94V-0
