Measurement software Tcp-tunnel

CADcontrolpositioning

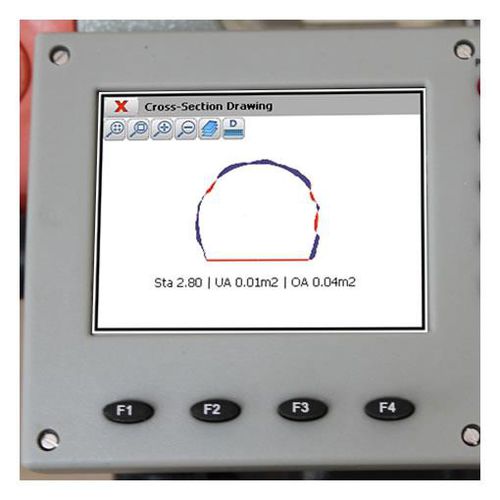

TcpTunnel can be installed in a wide range of motorized total stations, or in a data collector. The cross sections are measured automatically, simply giving the desired interval and the number of points per profile. The application shows the theoretical and measured tunnel section, with top and front views displaying infra and over-excavation areas. It also has functions for setting out the front, pavement or tunnel profiles, checking control points, calculating areas, etc. Each project is defined by the horizontal and vertical alignments, superelevations and tunnel templates, that can be converted from a CAD drawing, defined by parameters or points measured with total station. Positioning and Orientation As a prior step to surveying and setting out, the station should be oriented by coordinates, angle or resection. User can select between local and UTM projected coordinates. Cross-section Measurement TcpTunnel performs automatic and unattended cross-section measurement for each station, defined by angle, arc length or height difference intervals. Singular points and roadbed can be measured, and exclusion areas defined as well.
