CAD software TcpTUNNEL CAD

surveyingalignment3D

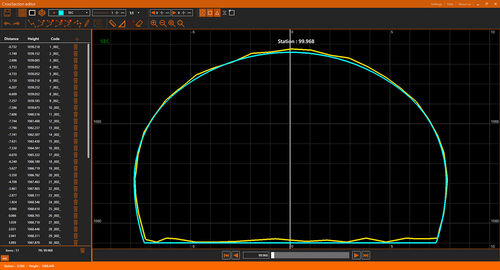

This CAD application processes tunnel surveying data measured by total stations running TcpTunnel or other programs. TcpTunnel CAD calculates from the points and alignment the cross sections, that can be filtered and edited, and allows you to compare with the tunnel template drawn as a polyline. You can also draw profiles in single or sheet mode with multiple customization options, as well as generate the 3D model of the tunnel. The application also calculates infra or over-excavation areas and volumes, generating reports that can be printed or exported to various formats. Every project is compound of an horizontal and vertical alignment, tunnel templates and point files, supporting different file formats such as LandXML, Trimble TXL, etc. Templates Templates can be defined by parameters or selecting a polyline in CAD. It is possible to apply different templates to intervals of alignment and interpolate their dimensions. Cross-section drawing The measured cross-sections can be computed from points, and it is possible to draw them in individual mode or by sheets.There are options to label differences between project and measured cross-sections as well as station, heights, areas, etc. It is possible to create a 3D view of measured cross-sections as a wireline drawing.
